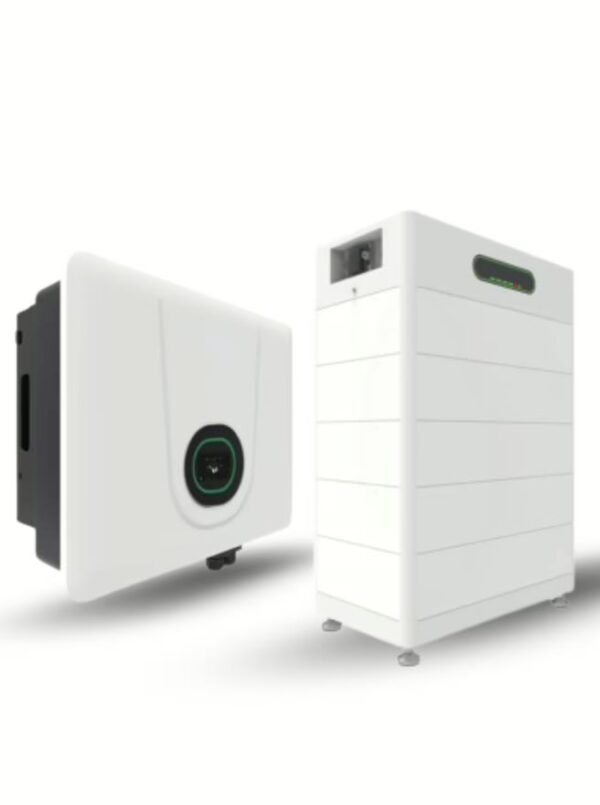

Model ‘APOLLO’ - Three Phase - Wall + Floor type

Model ‘APOLLO’ – Three Phase Lithium LFP Battery – 2.56kW/5.12kw – Wall + Floor type HYBRID SOLAR – Offgrid+UPS

Please  to see price or purchase this item

Categories , ,

Specifications

  • Model Options: 5KT, 8KT, 10KT, 12KT
  • PV Input: Up to 18A/string (max), 1000V DC, 2~4 strings (model dependent)
  • Max PV Power: 7,500W (5KT), 12,000W (8KT), 15,000W (10KT), 18,000W (12KT)
  • Battery Type: Li-Ion/LiFePO₄ or Pb-Acid, 150–750V, 15–25A charge/discharge
  • AC Output (Backup/Grid): 5,000–12,000VA (cont.), 1.5× surge (10s), 3/N/PE, 230/400V, 50/60Hz
  • UPS Switching: <10ms
  • Efficiency: Up to 98.2% (max), Euro efficiency up to 97.4%
  • Protection: Overcurrent, over/under voltage, surge, short-circuit, isolated battery/grid
  • Enclosure: IP65, intelligent cooling
  • Communication: CAN, RS485, optional Wi-Fi



Please sign in to Know Price

For Enquire

Get Quote
Chat With Us

Products Details

Download Brochure

5KT | 8KT | 10KT | 12KT datasheet

2.56 Kwh DateSheet

5.12 Kwh Datesheet



Dimensions

ModelWidth (mm)Height (mm)Depth (mm)Weight (kg)
All50042518527–31

Battery Module

ModelWidth (mm)Depth (mm)Height (mm)Weight (kg)
Apollo 2.56kWh892200665104
Apollo 5.12kWh892200815136

Apollo 3PH Hybrid Inverter

Attribute NameValue
Inverter Type3-Phase Hybrid (5KT/8KT/10KT/12KT)
PV Inputup to 18A/string, 1000V DC, Max. 7,500–18,000W
Battery CompatibilityLFP/Li-ion/Pb-Acid, 150–750V
AC Output5–12kVA cont., 1.5× surge, 50/60Hz, pure sine
Switch/UPS Time<10ms
EfficiencyMax 98.2%, Euro 97.2–97.4%
ProtectionsAll major grid, panel, and battery protections
EnclosureIP65 (outdoor), -30°C~+60°C, <45dB
CommunicationCAN, RS485, Wi-Fi (optional)
Dimensions (mm)500×425×185
Weight27–31kg (by model)
Warranty5 years
CertificationsIEC/EN, VDE, CE, EMC, ROHS
