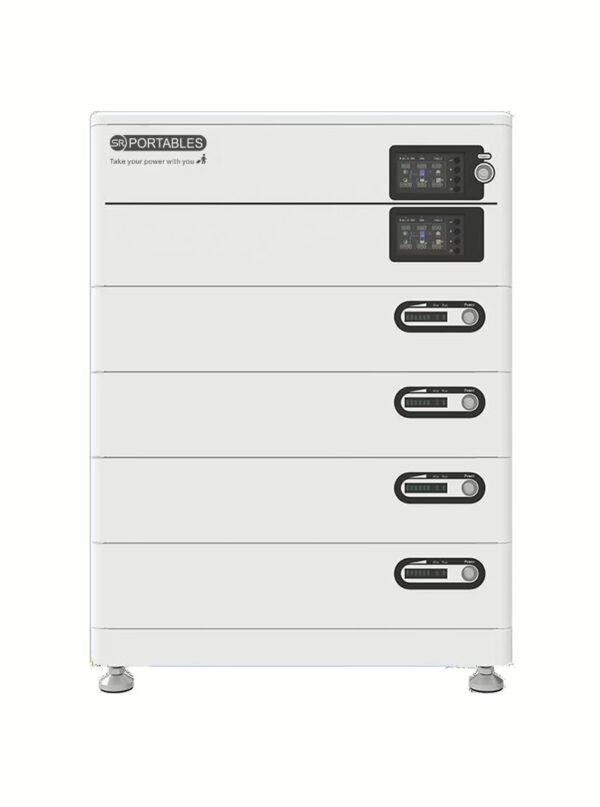

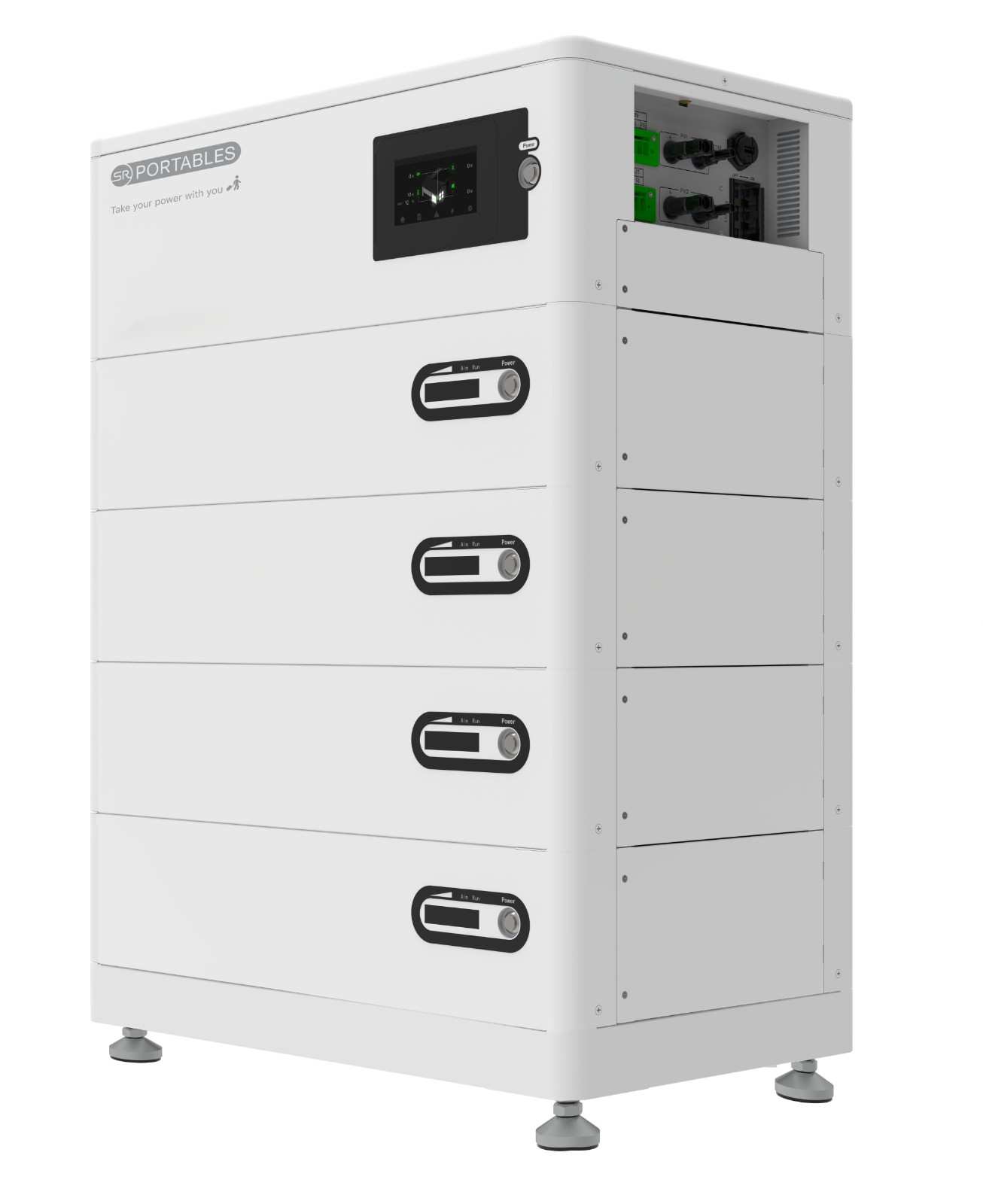

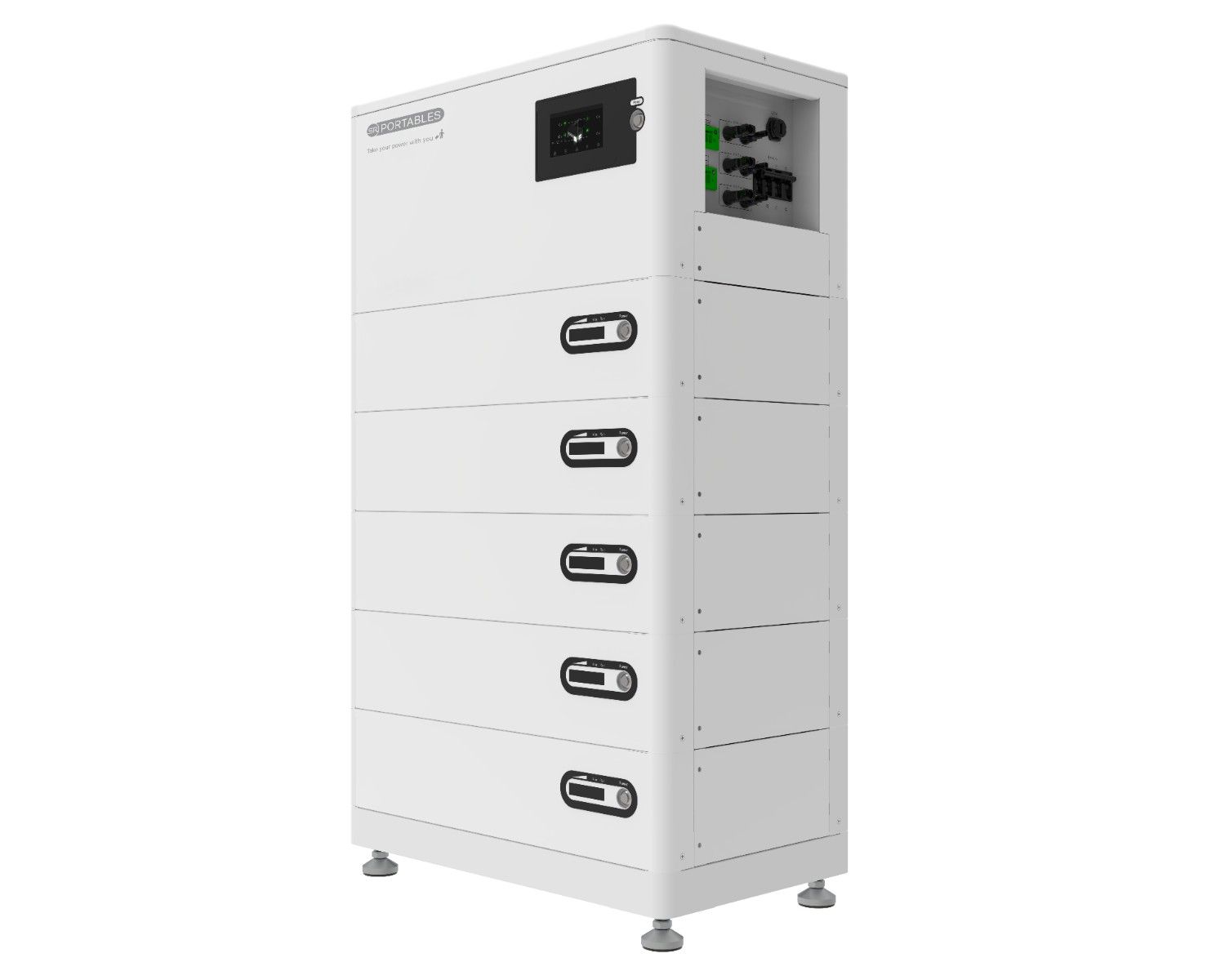

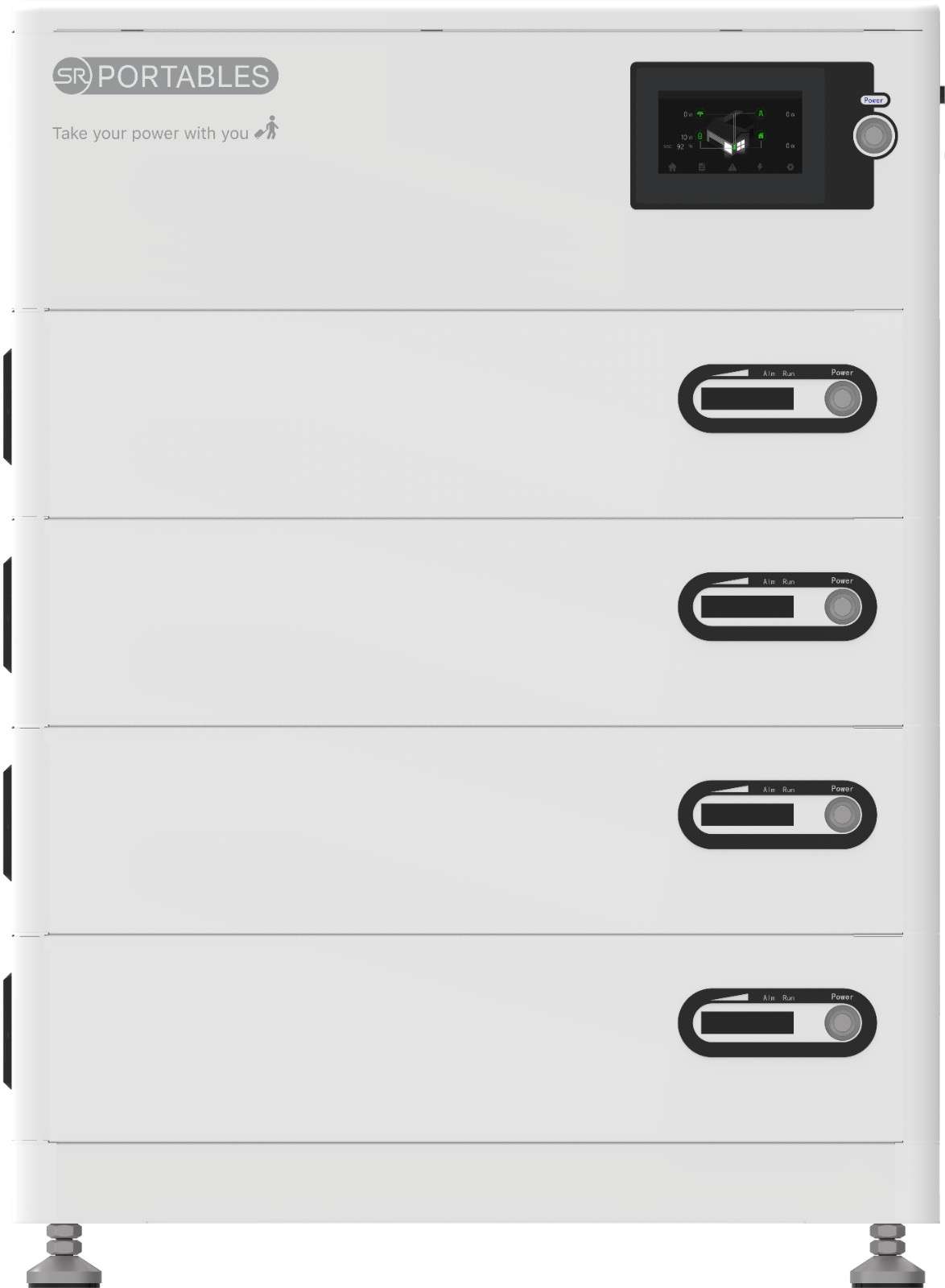

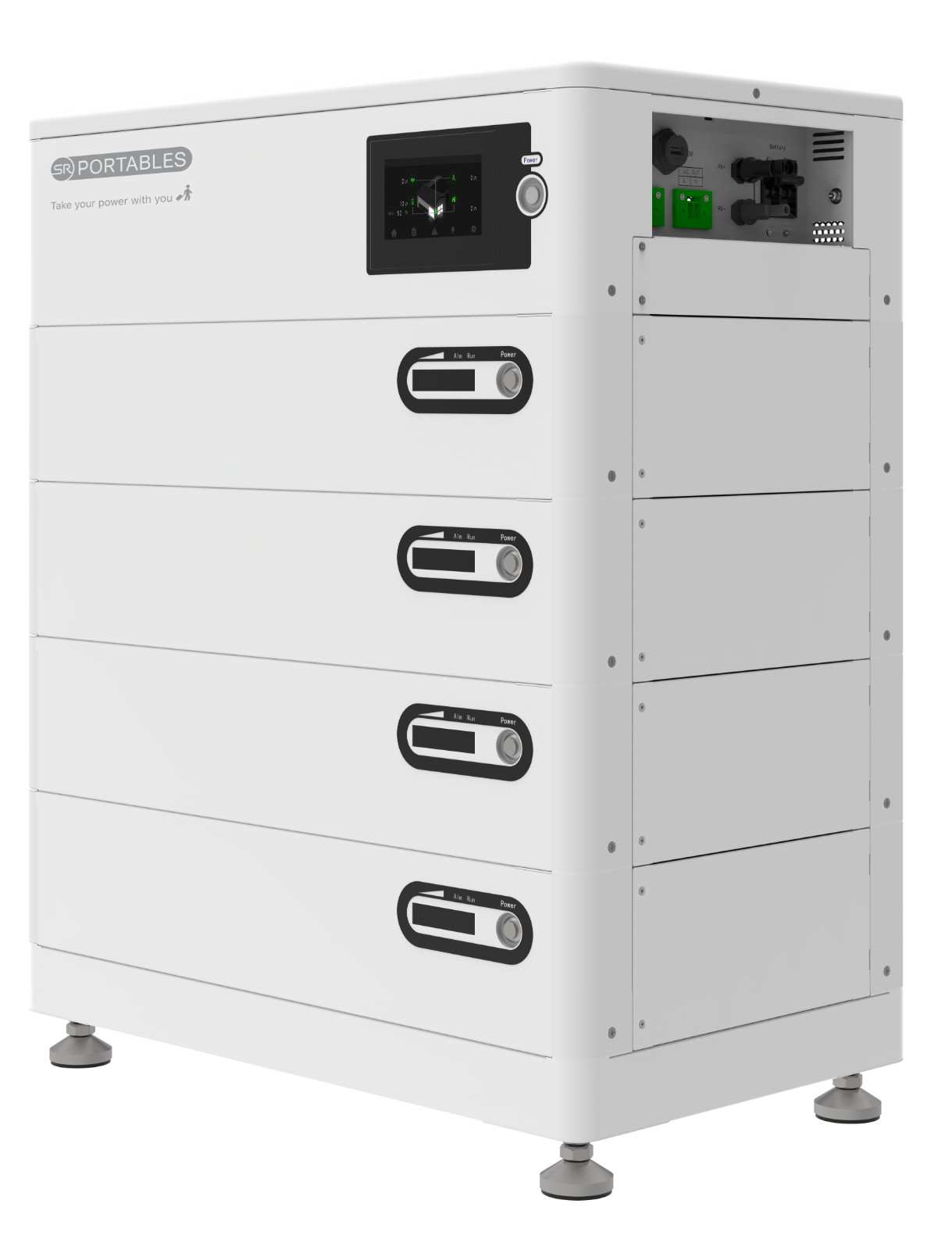

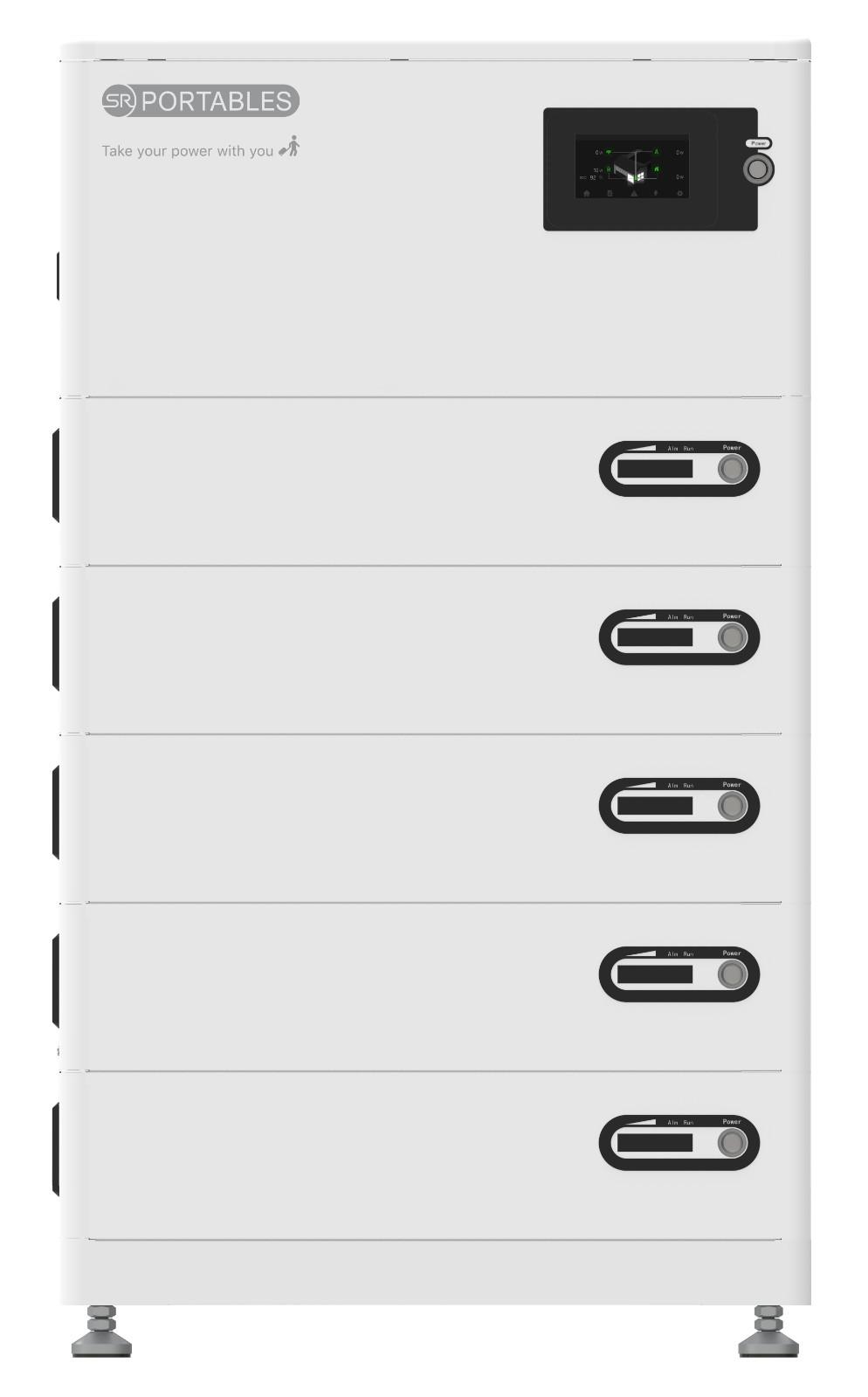

Model ‘HYPERION’ – Single Phase 5kW-7kW-10kW Offgrid Solar UPS

Specifications

• Battery Type: LiFePO₄, 6,000+ cycles (to 80% capacity), stackable (up to 8, totalling 40.96kWh)

• Battery Single Capacity/Kit: 5.12kWh (51.2V), usable energy: ~4.6kWh each

• Batteries per System (Max): 8 units (up to 40.96kWh)

• Depth of Discharge: 90–95% (max)

• AC Output:

  • 5kW: 5,000W continuous, 10,000W (150%) surge

  • 7kW: 7,000W continuous, 14,000W surge

  • 10kW: 10,000W continuous, 20,000W surge (typical for series)

  • Output Voltage: 208/220/230/240Vac ±5%

  • Output Frequency: 50/60Hz ±1%

  • Output Waveform: Pure Sine Wave

  • Max Output Current: up to 22.7A (5kW); up to 30A (7kW); model-dependent

• PV (Solar) Input:

  • 5kW: up to 5,000W (150% surge)

  • 7kW: up to 9,000W (150% surge)

  • 10kW: up to 12,000W (typical)

  • PV Input Voltage Range: 120–430Vdc; Max PV Input Voltage: 450Vdc

  • MPPT: Yes

• Efficiency: >92% (battery mode)

• Transfer (UPS) Time: ≤10ms (UPS); 20ms (APL mode)

• Operating Temp: Charge: 0–50°C; Discharge: -10–55°C; Storage: -15–60°C

• Protection: Fire suppression, overload, short-circuit, over/undervoltage, overheating, anti-reverse, surge

• Enclosure: IP20 (indoor type)

• Communication: RS232, CAN2.0, Wi-Fi (optional)

• Noise: <25dBA (battery)

• Expandability: Stackable battery packs

• Certifications: Australian Made®, CE, FCCE, ROHS, UN38.3, TUV, IEC 62109
