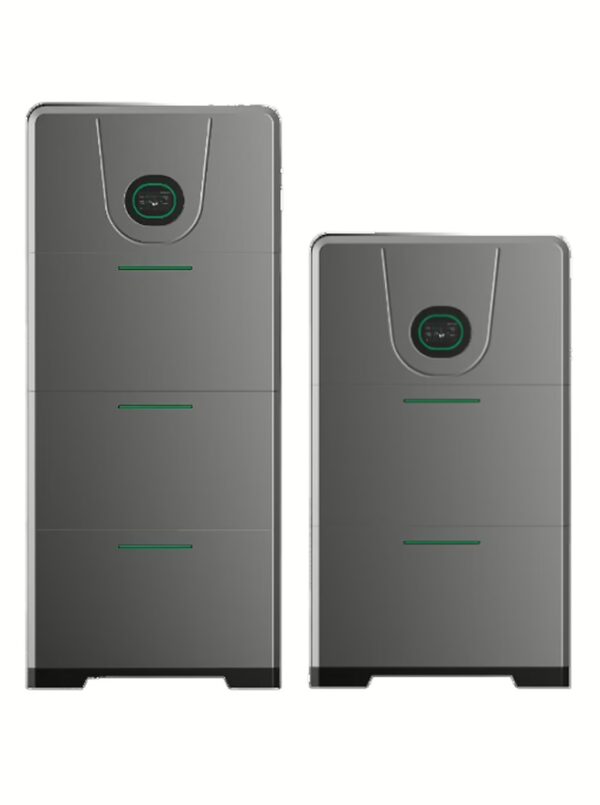

Model ‘THOR’ – Single Phase- 5kW 8kW HYBRID SOLAR – Offgrid + UPS

Please  to see price or purchase this item

For Enquire

Products Details

Download Brochure

5kW/8kW Datasheet

Attributes

Attribute Name Value
Battery Type LiFePO₄ (LFP), 51.2V, 5.12kWh/module, up to 8 modules
Battery Capacity 5.12kWh–40.96kWh (stackable)
AC Output 5kW/8kW continuous, 7,500/12,000W surge, 220/230V, 50/60Hz, pure sine wave
DC/MPPT Inputs 2× MPPT, PV range 80–500V, 14A/string, max: 7.5kW/12kW
Max PV Voltage 550V
Charge/Discharge Current 100A (5kW), 160A (8kW)
Switch Time <20ms
Efficiency Max: 97.6%, Euro: 97%, Battery: 95%
Protection Features Fire suppression, overload, over/under voltage, overheating, surge, short-circuit
Enclosure & Cooling IP65, natural convection
Weight 178kg (5kW), 201kg (8kW); battery: 34kg/module
Dimensions (WxDxH mm) 675×200×1350 (5kW), 675×200×1570 (8kW); battery: 675×200×415
Stackable Expansion Up to 8 batteries (max 40.96kWh)
Communication RS485, Wi-Fi optional
Certifications Australian Made®, ROHS, FC, CE, IEC62109-1, IEC62109-2, EN61000

Dimensions

Model Main Unit (WxDxH mm) Weight (System, kg)
5kW 675×200×1350 178
8kW 675×200×1570 201
