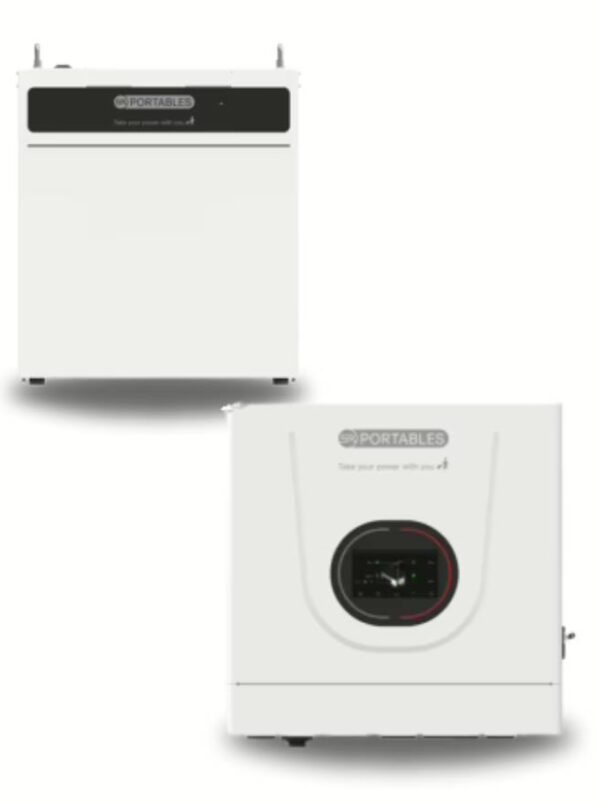

HYBRID SOLAR - Offgrid + UPS - Model ‘TITAN’
Model ‘TITAN’ - Single Phase - 5.12kW/10.24kW or 5.36kW Wall + Floor type Lithium LFP battery HYBRID SOLAR - Offgrid + UPS - Image 2
Model ‘TITAN’ - Single Phase - 5.12kW/10.24kW or 5.36kW Wall + Floor type Lithium LFP battery HYBRID SOLAR - Offgrid + UPS - Image 3
Model ‘TITAN’ - Single Phase - 5.12kW/10.24kW or 5.36kW Wall + Floor type Lithium LFP battery HYBRID SOLAR - Offgrid + UPS - Image 4
Model ‘TITAN’ - Single Phase - 5.12kW/10.24kW or 5.36kW Wall + Floor type Lithium LFP battery HYBRID SOLAR - Offgrid + UPS - Image 5
Model ‘TITAN’ - Single Phase - 5.12kW/10.24kW or 5.36kW Wall + Floor type Lithium LFP battery HYBRID SOLAR - Offgrid + UPS - Image 6

Model ‘TITAN’ – Single Phase – 5.12kW/10.24kW or 5.36kW Wall + Floor type Lithium LFP battery HYBRID SOLAR – Offgrid + UPS

Please  to see price or purchase this item

Categories , , ,

Specifications

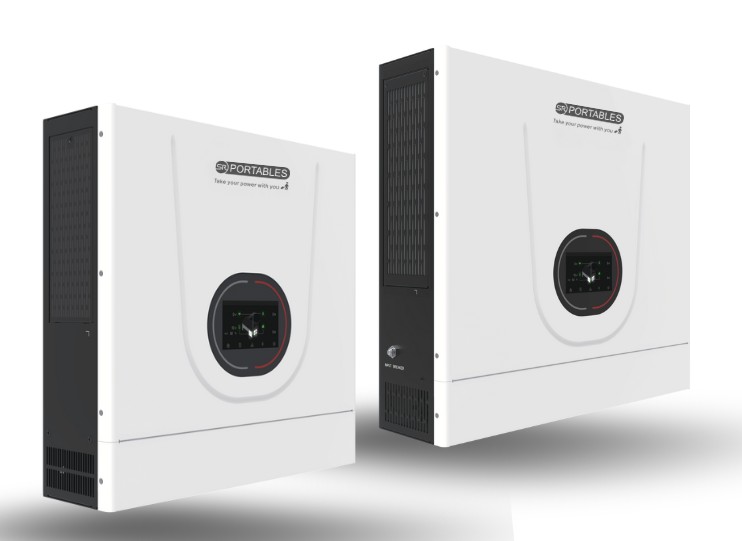

  • Inverter Output: 3.6kW, 5kW, 6.2kW, 12kW pure sine wave (single phase)
  • Surge Output: Up to 2× rated power, 10 seconds
  • PV Input Power: Up to 4,680W (3.6kW), higher for larger models
  • PV MPPT Voltage Range: 100–500V; operating: 125–425V
  • Max. PV Input Current: 13–18A (per MPPT tracker, multiple trackers per model)
  • Max. AC Charging/Discharging Current: 100A
  • AC Output Voltage: 220/230/240V (single phase), 50/60Hz
  • UPS Transfer Time: ≤10ms
  • Protection Features: Over/under voltage, overload, surge, short circuit, anti-islanding, fire suppression
  • Communication: RS485, CAN, remote app/OTA upgrade
  • Cooling & Noise: Smart cooling; <30dB
  • Install Style: Wall-mounted (inverter); floor/rack/wall/stack (battery)

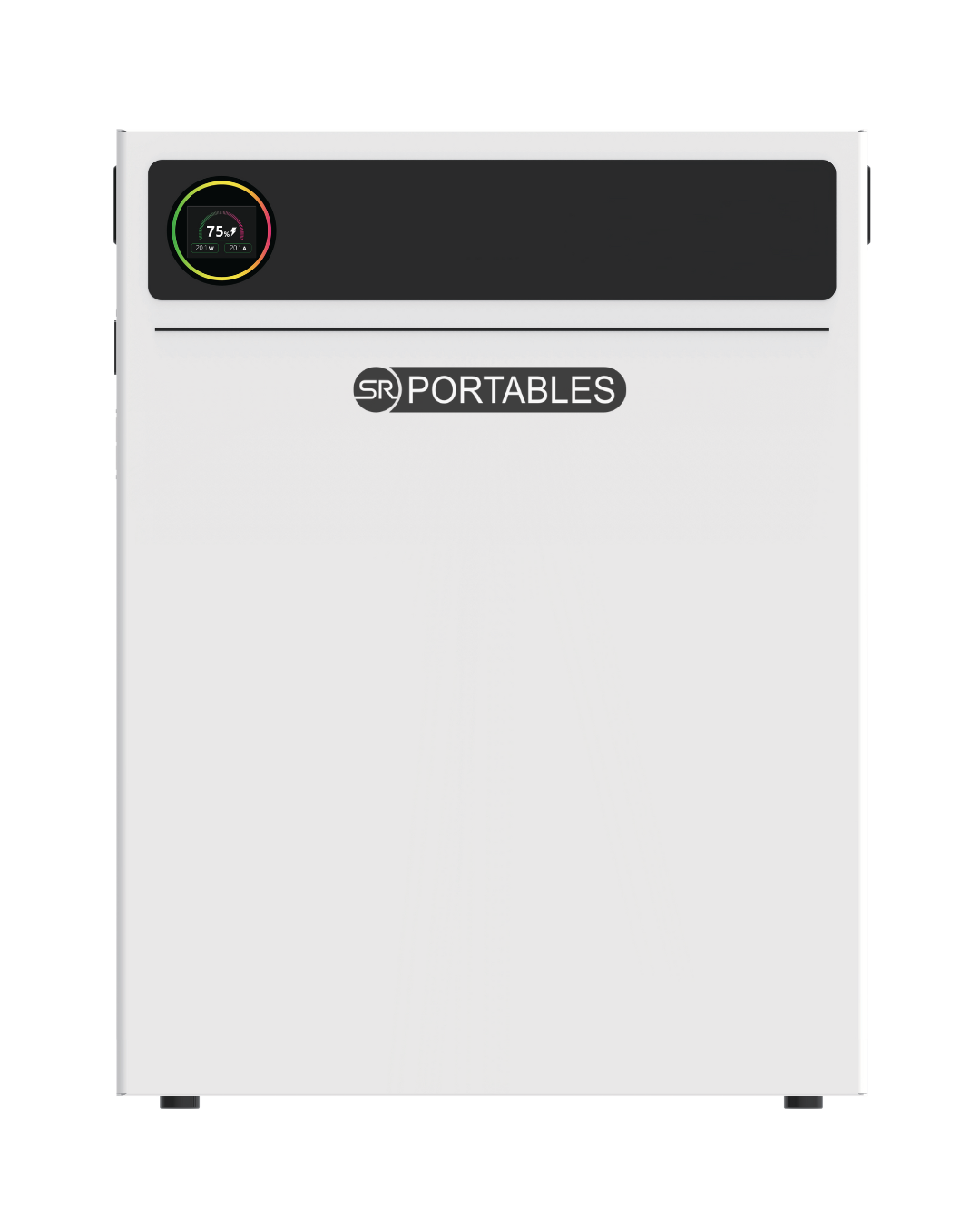

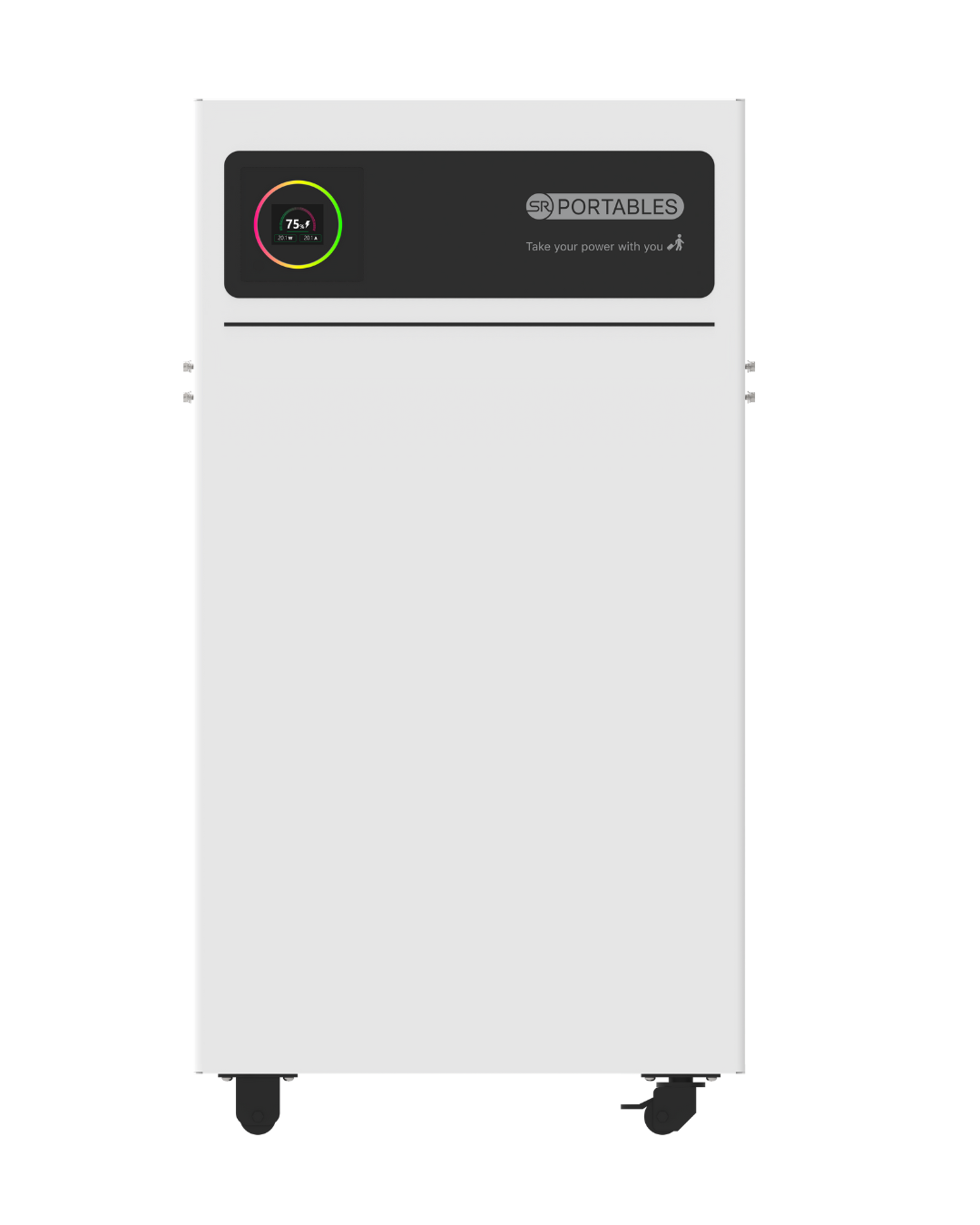

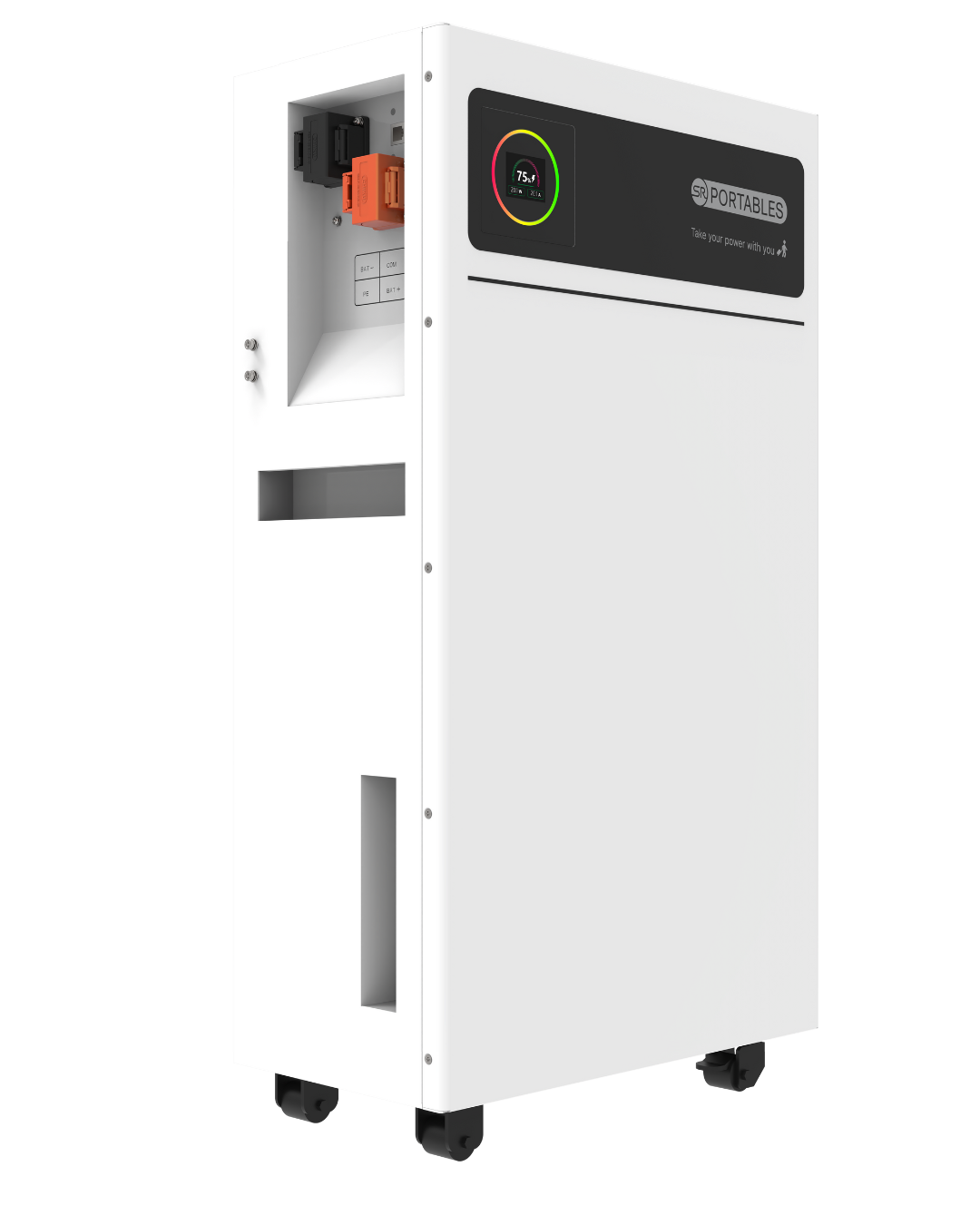

Battery Specs

  • Battery Type: Lithium Iron Phosphate (LiFePO₄)
  • Capacity: 5.12kWh, 10.24kWh, 15kWh per module
  • Usable Energy: ~90% of nominal (e.g., 4.6kWh for 5kWh module)
  • Rated Voltage: 51.2V (range: 44.8–57.6V)
  • Max. Charge/Discharge Rate: 100A–200A (model dependent)
  • Cycle Life: ≥6,000 cycles to 80% retention at 25°C
  • Scalability: Up to 10 modules in parallel (expand to 51.2kWh)
  • Mounting: Floor, wall, rack or stackable
  • Certifications: Australian Made®, CE, ROHS, FC, IEC62109, TUV, UN38.3

Products Details

Description

Specifications

  • Inverter Output: 3.6kW, 5kW, 6.2kW, 12kW pure sine wave (single phase)
  • Surge Output: Up to 2× rated power, 10 seconds
  • PV Input Power: Up to 4,680W (3.6kW), higher for larger models
  • PV MPPT Voltage Range: 100–500V; operating: 125–425V
  • Max. PV Input Current: 13–18A (per MPPT tracker, multiple trackers per model)
  • Max. AC Charging/Discharging Current: 100A
  • AC Output Voltage: 220/230/240V (single phase), 50/60Hz
  • UPS Transfer Time: ≤10ms
  • Protection Features: Over/under voltage, overload, surge, short circuit, anti-islanding, fire suppression
  • Communication: RS485, CAN, remote app/OTA upgrade
  • Cooling & Noise: Smart cooling; <30dB
  • Install Style: Wall-mounted (inverter); floor/rack/wall/stack (battery)

Battery Specs

  • Battery Type: Lithium Iron Phosphate (LiFePO₄)
  • Capacity: 5.12kWh, 10.24kWh, 15kWh per module
  • Usable Energy: ~90% of nominal (e.g., 4.6kWh for 5kWh module)
  • Rated Voltage: 51.2V (range: 44.8–57.6V)
  • Max. Charge/Discharge Rate: 100A–200A (model dependent)
  • Cycle Life: ≥6,000 cycles to 80% retention at 25°C
  • Scalability: Up to 10 modules in parallel (expand to 51.2kWh)
  • Mounting: Floor, wall, rack or stackable
  • Certifications: Australian Made®, CE, ROHS, FC, IEC62109, TUV, UN38.3

Download Brochure

3.6 KW | 5KW | 6.2KW | 12KW Datasheet

5kWh | 10kWh | 15kWh Datasheet



Attributes

Attribute Name Value
Battery Type LiFePO₄, ≥6,000 cycles, 44.8–57.6V, 100A+
Battery Capacity 5.12kWh, 10.24kWh, 15kWh per module; up to 51.2kWh (stackable, 10x)
Usable Energy ~90% of nominal (e.g., 4.6kWh, 9.2kWh, 14.5kWh per module)
AC Output 3.6kW, 5kW, 6.2kW, 12kW (pure sine wave, single phase)
Surge / EPS Output Up to 2× rated (10 sec)
PV Input Up to 4.68kW (base); MPPT 100–500V, 13–18A, multi-track MPPT
Max AC Charge Current 100A
Charge/Discharge Rate Up to 100A (5/10kWh), 200A (15kWh model)
Depth of Discharge ~90%
Cycle Life ≥6,000 cycles at 25°C, 0.5C
Communication RS485, CAN 2.0, remote APP/OTA optional
Cooling/Noise Natural/smart fan, <30dB
Protection Features Overload, surge, over/under voltage, short-circuit, anti-island, fire suppression
Certifications Australian Made®, CE, ROHS, FC, IEC/TUV, UN38.3
Dimensions (mm, Inverter) 352×450×206
Dimensions (mm, Battery) 5kWh: 500×440×135 10kWh: 701×535×165 15kWh: 845×450×251
Weight (kg) (Inverter) 14
Weight (kg) (Battery) 5kWh: 45 10kWh: 87 15kWh: 120
Installation Wall/floor/rack/stackable

Dimensions

Model Width (mm) Height (mm) Depth (mm) Weight (kg)
All (Typical) 352 450 206 14

Battery Module

Model H (mm) W (mm) D (mm) Weight (kg)
5kWh 500 440 135 45
10kWh 701 535 165 87
15kWh 845 450 251 120
