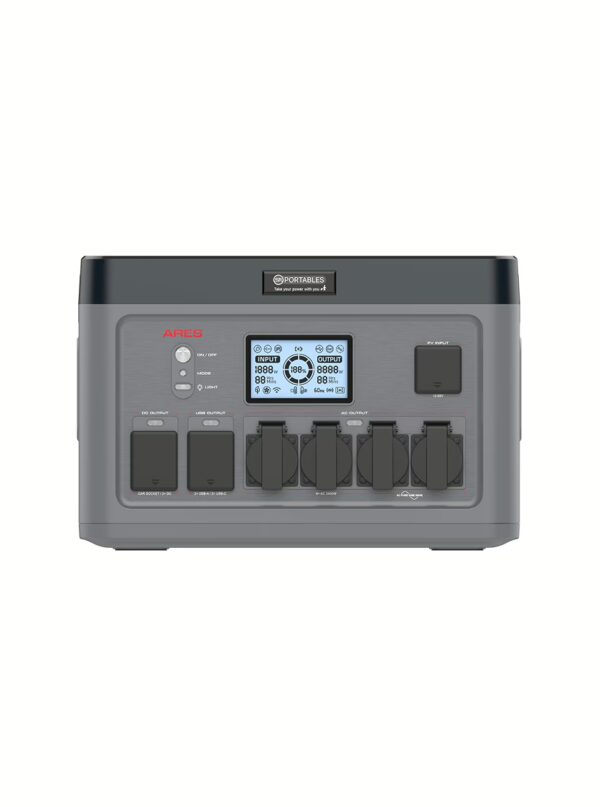

Ares – Portable – Off Grid Solar Storage System – Portable UPS

Please  to see price or purchase this item

Categories ,

Specifications

  • Battery Type: Lithium Iron Phosphate (LiFePO₄), 4,000+ cycles (to 80% capacity)
  • Battery Capacity: 2,060Wh (51.2V, 40Ah)
  • AC Output: 2,400W continuous, 4,800W surge, pure sine wave, 230V/240V, 50Hz, 4x outlets
  • DC Outputs:
    • 1× Cigarette lighter: 12V–10A
    • 2× DC: 12V–3A (each)
    • Solar DC: 12V–55V, 800W/25A Max
    • Car Charger: 12V/24V, 192W Max
  • USB Outputs:
    • 2× USB-A: 5V–3A, 9V–2A, 12V–1.5A, 18W Max each
    • 2× USB-C: 5V/9V/12V/15V/20V–3A, 20V–5A, 100W Max
  • Wireless Charging: 10W
  • LED Light: 5W
  • Net Weight: 26kg
  • Charge Input:
    • AC: 200V–260V, 6.5A, 50Hz, 1,500W
    • PV: 12–55V, 800W Max
  • Operating Temp: -10 to 40°C (operation), 0 to 40°C (charging), -20 to 45°C (storage)
  • Water Resistance: IP54 rating
  • UPS Switching Time: ≤10ms
  • Physical Protection: IP54 enclosure
  • Certifications: Australian Made®, FCCE, ROHS
Please sign in to Know Price

For Enquire

Get Quote
Chat With Us

Products Details

Description

Specifications

  • Battery Type: Lithium Iron Phosphate (LiFePO₄), 4,000+ cycles (to 80% capacity)
  • Battery Capacity: 2,060Wh (51.2V, 40Ah)
  • AC Output: 2,400W continuous, 4,800W surge, pure sine wave, 230V/240V, 50Hz, 4x outlets
  • DC Outputs:
    • 1× Cigarette lighter: 12V–10A
    • 2× DC: 12V–3A (each)
    • Solar DC: 12V–55V, 800W/25A Max
    • Car Charger: 12V/24V, 192W Max
  • USB Outputs:
    • 2× USB-A: 5V–3A, 9V–2A, 12V–1.5A, 18W Max each
    • 2× USB-C: 5V/9V/12V/15V/20V–3A, 20V–5A, 100W Max
  • Wireless Charging: 10W
  • LED Light: 5W
  • Net Weight: 26kg
  • Charge Input:
    • AC: 200V–260V, 6.5A, 50Hz, 1,500W
    • PV: 12–55V, 800W Max
  • Operating Temp: -10 to 40°C (operation), 0 to 40°C (charging), -20 to 45°C (storage)
  • Water Resistance: IP54 rating
  • UPS Switching Time: ≤10ms
  • Physical Protection: IP54 enclosure
  • Certifications: Australian Made®, FCCE, ROHS

Additional information

Dimensions430 × 300 × 287 cm

Attributes

Attribute NameValue
Battery TypeLithium Iron Phosphate (LiFePOâ‚„), 4,000+ cycles @ 80%
Battery Capacity2,060Wh (51.2V, 40Ah)
AC Output2,400W continuous, 4,800W surge, 230V/240V~50Hz, pure sine wave, 4x outlets
DC Outputs12V–10A (cig lighter), 2×12V–3A, 12V–55V (solar in), car charger 12V/24V–192W Max
USB Outputs2× USB-A (5V/9V/12V, 18W Max), 2× USB-C (100W Max)
Wireless Charging10W
AC Input (Adapter)200–260V, 6.5A, 50Hz, 1,500W
Solar Input12–55V, 800W Max
Car Charger Input12V/24V, 192W Max
LED Light5W
Protection FeaturesOverload, undervoltage, overvoltage, overheating, short circuit, anti-reverse
Recommended Solar Panel800W Max, 12–55V
CertificationsAustralian Made®, FCCE, ROHS
Water ResistanceIP54
Weight26kg
Dimensions (L×W×H mm)430 × 300 × 287
